HDMI over Fiber Optic Extender and DVI over Fiber Extender support 4K
HANGZHOU, China – Mini HDMI over Fiber Extender, 4K@60Hz(4:2:0), HDMI 2.0

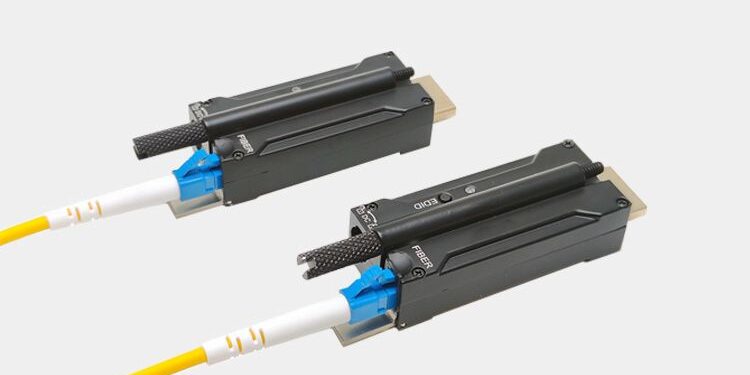

VOSCOM HDMI over Fiber Extender, VOS-HDMI-T/R-Mini can transmit your HDMI signal up to 1km over single-mode fiber, or up to 300m over multi-mode fiber, requires no adjustments, equalization or de-skewing during installation, plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.
The HDMI over Fiber Extender support HDMI 2.0, resolution up to 4K 60Hz (4:2:0), 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. For HDMI signals with protected content, the VOS-HDMI-T/R-Mini continuously authenticates HDCP compliance to support quick and reliable transmission, designed to solve the installers common problems with long distance HDMI transmission.
Key Features:
- Support uncompressed HDMI 2.0, HDCP 2.2, up to 10.2Gbps
- Support 4K 60Hz (4:2:0), 4K 30Hz (4:4:4), Backward compatible
- Dual EDID modes (built-in + manual learning) with button switching
- Support EDID memory retention after power-off
- Support Sing-mode 1km or Multi-mode 300m
- Support lossless embedded audio like Dolby TrueHD and TDS-HD
- LED Status Provide Rapid Indication of Operating Parameters
- Plug and play
Mini DVI over Fiber Extender, 4K@30Hz 4096×2160, 3840×2160
VOSCOM DVI over Fiber Extender, VOS-DVI-T/R-Mini can transmit your DVI signal up to 1km over single-mode fiber, or up to 300m over multi-mode fiber. Requires no adjustments, equalization or de-skewing during installation, plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.
The fiber extender supports resolution up to 4K 30Hz (4:4:4), Backward compatible. EDID is managed by maintaining continuous EDID communication with the source, ensuring that it powers up properly and maintains video output. The VOS-DVI-T/R-Mini is desinged to solve the installers common problems with long distance DVI transmission.
Key Features:
Support uncompressed DVI over Fiber
Support 4K 30Hz (4:4:4), Backward compatible
Dual EDID modes (built-in + manual learning) with button switching
Support EDID memory retention after power-off
Support Single-mode 1km or Multi-mode 300m
LED Status Provide Rapid Indication of Operating Parameters
Plug and play
